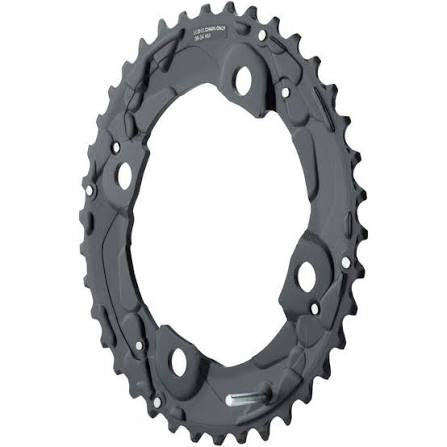

SHIMANO DEORE FC-M617 10-SPEED CHAINRING

The Shimano Deore 10-speed Chainring for the FC-M617 crank

This Shimano 10-speed chainring is suitable for the Deore FC-M617 crank, also for the B version with 3 mm further out chainline. 36- and 38-tooth version can also be used with the FC-M627. The small chainring is made of steel, the large chainrings are made of aluminium.

Specifications:

Application:

All Mountain, Cross Country

Mount:

104/64 mm bolt circle diameter, 4-arm

Teeth:

24 t, 36 t, 38 t

Gearing:

2x10-speed

Technical Information:

Combinations:

22-36 T, 24-38 T

Material:

steel (24 t), aluminium (36 t + 38 t)

Features:

• large chainring anodised, small chainring plated

Models:

24 tooth:

Type:

AM / AZ

Bolt Circle Diameter:

64 mm

Compatibility:

Deore FC-M617 (-B2)

Manufacturer Number:

Y-1RP24000

36 tooth:

Type:

AY

Bolt Circle Diameter:

104 mm

Compatibility:

Deore FC-M617(-B2) / FC-M627, FC-M627B

Manufacturer Number:

Y-1RP98070

38 tooth:

Type:

AZ

Bolt Circle Diameter:

104 mm

Compatibility:

Deore FC-M617(-B2) / FC-M627, FC-M627B

Manufacturer Number:

Y-1RP98080

Note:

The 22-tooth chainring (Y-1KF22000) is identical to the FC-M660 chainring. The 24-tooth chainring for FC-M627 (Y-1NA24000) is identical to the FC-M675 chainring.

Note to Type Designation:

The type designation (one or two characters) helps identify the compatibility of various chainrings with other chainrings. Because the larger chainrings have specially-formed teeth and upward shifting assistance, only particular smaller chainrings will match to ensure proper shifting performance. An XY chainring should only be combined with another XY chainring. This applies to all other types as well
